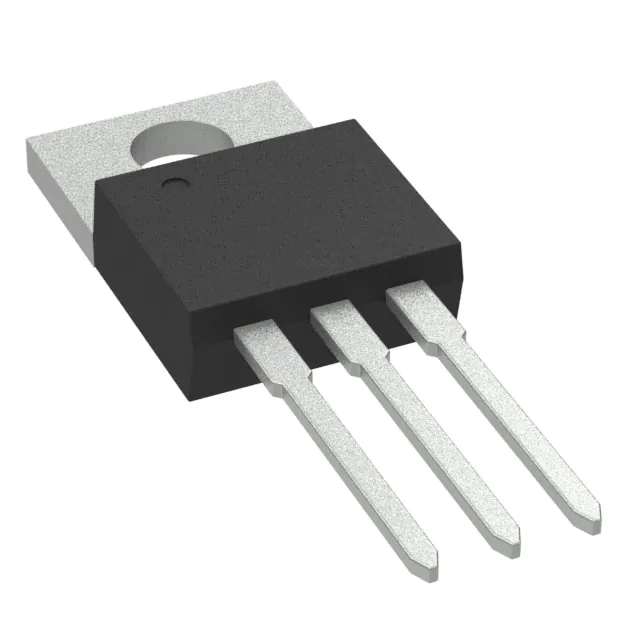

CSD18532KCS
CSD18532KCS
- Available: 1000
- Manufacturer: Texas Instruments
- Part Number: CSD18532KCS
- Detailed Description: 通孔 N 通道 60 V 100A（Tc） 250W（Tc） TO-220-3
- Category: 分立半导体产品 | 晶体管 - FET，MOSFET - 单 FET，MOSFET
- RoHS Status： 符合 ROHS3 规范
- Datasheet: Datasheet
Reference Price (USD)
1+
$3.2880
10+
$3.0907
100+
$2.9263
1000+
$2.7619
10000+
$2.5975
Considering price fluctuations, this price is only for reference. Please send RFQ to sales@cytechsystems.com to get the best price, thank you.
Product Specifications
| Manufacturer | Texas Instruments |
|---|---|
| 系列 | NexFET™ |
| 包装 | - |
| 标准包装 | 50 |
| 产品状态 | 在售 |
| FET 类型 | N 通道 |
| 技术 | MOSFET（金属氧化物） |
| 漏源电压（Vdss） | 60 V |
| 25°C 时电流 - 连续漏极 (Id) | 100A（Tc） |
| 驱动电压（最大 Rds On，最小 Rds On） | 4.5V，10V |
| 不同 Id、Vgs 时导通电阻（最大值） | 4.2 毫欧 @ 100A，10V |
| 不同 Id 时 Vgs(th)（最大值） | 2.2V @ 250µA |
| 不同 Vgs 时栅极电荷 (Qg)（最大值） | 53 nC @ 10 V |
| Vgs（最大值） | ±20V |
| 不同 Vds 时输入电容 (Ciss)（最大值） | 4680 pF @ 30 V |
| FET 功能 | - |
| 功率耗散（最大值） | 250W（Tc） |
| 工作温度 | -55°C ~ 175°C（TJ） |
| 安装类型 | 通孔 |
| 供应商器件封装 | TO-220-3 |
| 封装/外壳 | TO-220-3 |
| 基本产品编号 | CSD18532 |
Environmental & Export
| RoHS Status | 符合 ROHS3 规范 |
|---|---|
| Moisture Sensitivity Level (MSL) | 1（无限） |
| REACH Status | REACH 产品 |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
